BV 8900 Side Mount


BV8900S – is an innovative and highly technically advanced glass railing. The company (Baros Vision) took over 15 months in development and prototyping, The end result produced a Glass Railing system that is easy to install.


Precise alignment of the glass is made possible thanks to the safety of the inside of the balcony with the use of a hexagon M5 key. The procedure only takes a few seconds with an electric screwdriver. Its strength of up to 2kN using standard tempered laminated glass makes this system among the most demanded solutions on the Market.


Durability is a key priority not only for us but also for our customers. This is why this side mount glass railing system was made with internal moving parts from Inox. The system also carries a special patented blend of plastic with twice the recommended UV protection. Rubber seals are manufactured from the most durable EPDM and have the highest UV protection. BV8900S is a system that offers high resistance to various atmospheric and environmental conditions including Wind, Rain, Salt, and UV rays.


BV8900S is certified for use in residential, domestic, and industrial sectors. The carefully selected materials make this system able to withstand heavy human traffic. This Glass Railing System is suitable for any usage.

Glass for Railings

Glass thickness:

6.6.2 / 6.6.4

8.8.2 / 8.8.4

10.10.2 / 10.10.4


8.8 – up to 2 kN

10.10 – up to 2 kN


Maximum height:

8.8 – up to 1200 mm 10.10 – up to 1300 mm

BV 8900S (Side Mount) Side Profile

Length: 5000mm
Height: 121,5mm
Width: 72,7mm

Channel: 5,47 kg / meter
Total: 7,35 kg / meter

Aluminium: EN AW6060
Color: Natural, Inox

Mounting anchors:
М10 / Concrete screw

BV8900S Side Mount Regulated

Precise regulation +/- 2°

BV 8900S Side Mount Features

Solid installation

BV8900S - Glass Thickness

Glass thickness

BV8900S- Pressure Resistance - 200KG

Glass Pressure resistant up to

Technical Drawing

BV 8900S (Side Mount) Side Profile.jpg

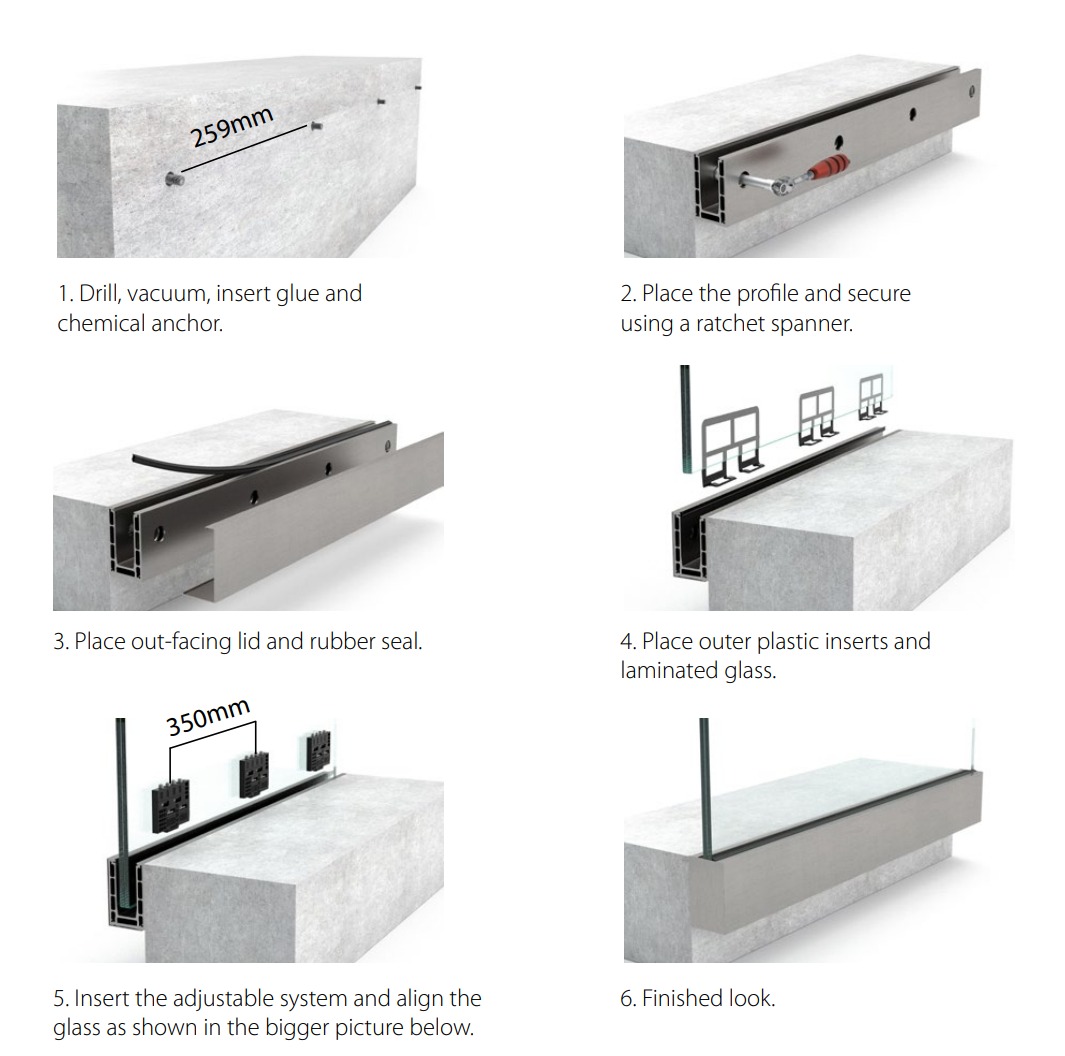

Installation Guide

BV 8900 Side Mount Installation Details.jpg

Youtube Installation Video

No Installation video yet
