BV 8900 Base Mount

Description

BV8900 – is an innovative and highly technically advanced glass railing. The company (Baros Vision) took over 15 months in development and prototyping, The end result produced a glass railing system that is easy to install.



Precise alignment of the glass is made possible thanks to the safety of the inside of the balcony with the use of a hexagon M5 key. The procedure only takes a few seconds with an electric screwdriver. Its strength of up to 2kN using standard tempered laminated glass makes this system among the most demanded solutions on the Market.

Specification

Durability is a key priority not only for us but also for our customers. This is why this glass railing system was made with internal moving parts from Inox. The system also carries a special patented blend of plastic with twice the recommended UV protection. Rubber seals are manufactured from the most durable EPDM and have the highest UV protection. BV8900 is a system that offers high resistance to various atmospheric and environmental conditions including Wind, Rain, Salt, and UV rays.



BV8900 is certified for use in residential, domestic, and industrial sectors. The carefully selected materials make this system able to withstand heavy human traffic. This glass railing system is suitable for any usage.

Glass for Railings

Glass thickness:

6.6.2 / 6.6.2

8.8.2 / 8.8.4

10.10.2 / 10.10.4

Strength:

8.8 – up to 3 kN

10.10 – up to 3 kN



Maximum height:
8.8 – up to 1200 mm 10.10 – up to 1300 mm

BV 8900 Base Mount Side Profile

Length: 5000mm
Height: 117mm
Width: 70mm

Channel: 5,47 kg / meter
Total: 6,41 kg / meter

Aluminium: EN AW6060
Color: Natural, Inox

Mounting anchors:
М10 / Concrete screw

BV8900 Base Mount Regulated

Precise regulation +/- 2°

BV8900 Base Mount Features

Solid installation

BV8900- Glass Thickness

Glass thickness

BV8900- Pressure Resistance - 300KG

Glass Pressure resistant up to

Technical Drawing

BV 8900 Base Mount Side Profile

Installation Guide

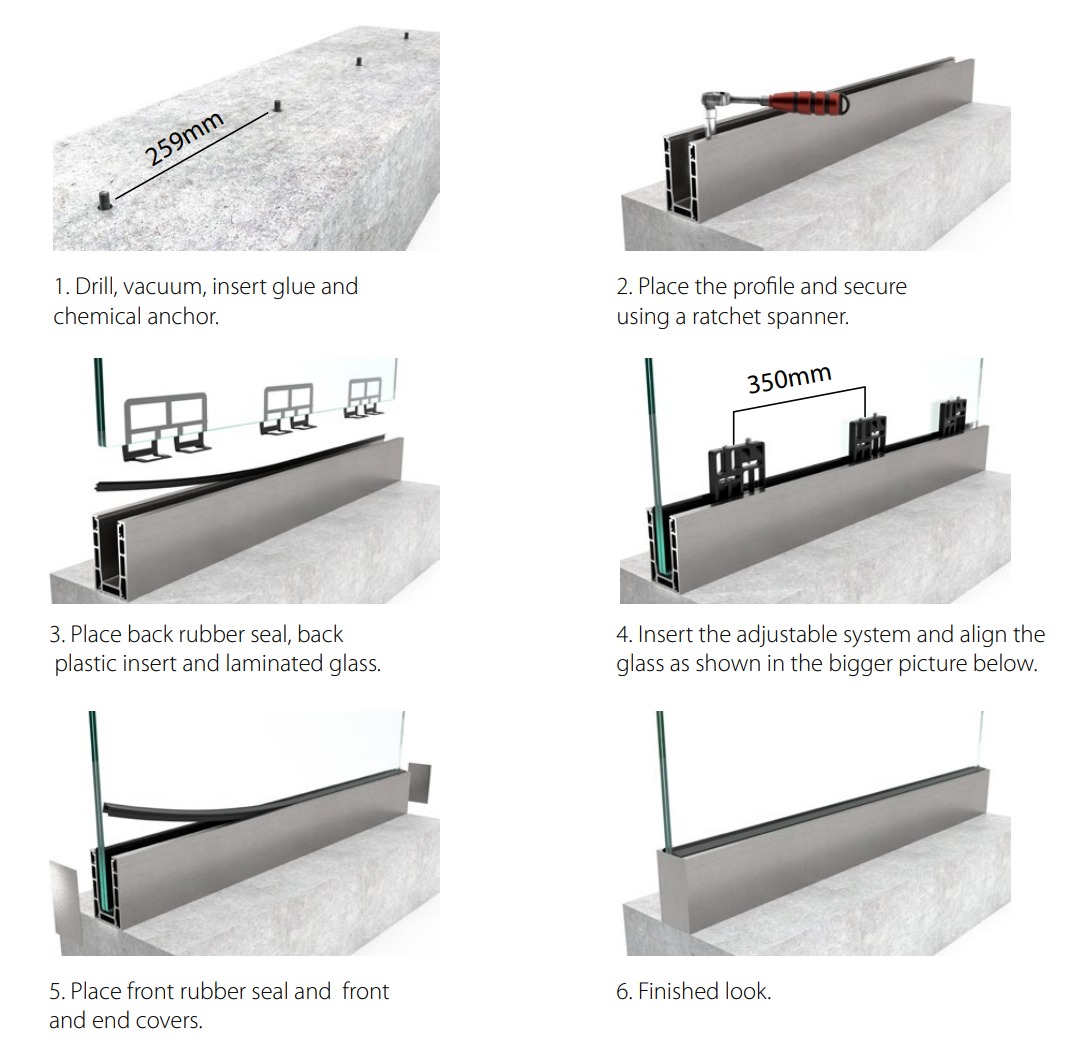

BV 8900 Base Mount Installation Guide

Youtube Installation Video

No Installation video yet
